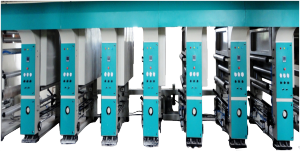

Rotogravure Printing Machine ARC-10
Call Now
WhatsApp
AvailabilityIn Stock
Rated 0.0/5 based on 0 customer review
5
0
0%
4
0
0%
3
0
0%
2
0
0%
1
0
0%
Rotogravure Printing Machine ARC-10 Details
AUTO REGISTRATION MODEL
| No. of Printing station up to: | 8 color |
| Max. web width: | 1500 mm. |
| Printing materials:- | LDPE, HDPE, LLDPE, PPCP, HMHDPE, Pet Film (10 micron) foil (35 Micron) paper (Up to 50 GSM) Polyester (10-20 Micron) BOPP PVC, OPP, paper Etc. |
| Print repeat rang :- | 314-1100 |
| Max. Roll Diameter :- | 800 mm / 500 Kgs. |
| Max. Operating speed | upto 150 /200 Mtrs. / Min. |
| Web tension range: | 6-30 Kg,. |
| Unwind Tension control By means of | ( Digital Control AC motor) |
| Inlet compressed Air Pressure 6 bar | ( Dry & Clean Air ) |
| Rewind tension range | 6-30 Automatic tension |
| Unwind slide displacement | By Web Aligner |
| Doctor blade pressure and Impression roller : | Pneumatic |
| Registration Lateral & Longitudinal : | Motorised |
Special future
- Special type quick change over C.I Doctor blade with S.S griper plate.
- One side thread EN-9 shaft with 40 hardening for main drive cylinder & Shanthi gear ( 50 mm. )
- Linear registration arrangement with bearing type gear box motorized registration.
- C.I foundation based one piece for wall mounting ( Printing plate )
- Timings belt drive arrangement for In-feed / Out-feed main drive & rewind ( Timing belt pulley & belt )
- Central exhaust pipe between both drying chambers for all stations.
- Load cell mounting three roll assembly arrangement for multi drive system.
- Rack & Pinion tray lifting arrangement with gearbox.
- Suitable fitting arrangement for 5 drive system (unwind /In-feed / out-feed / main drive and rewinding )
- Individual Air flow separators jet in drying chamber.
- Inspection provided in all station and rewind.
